Marc-D

Double door

Fire resistance:

EI 60 EI 120

Door size:

Designed per custom specifications

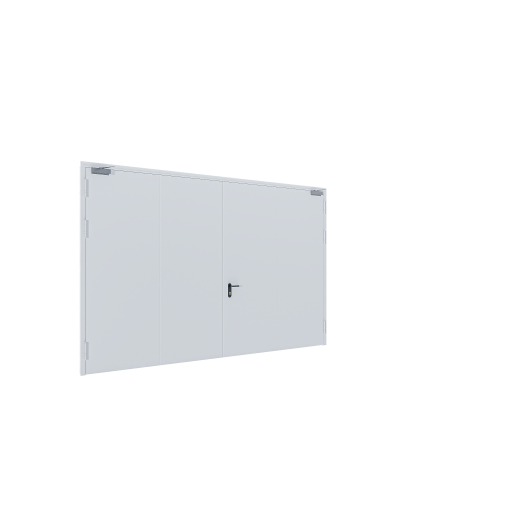

Produkt - Marc-D
DOWNLOADS

OVERVIEW, DESIGN AND PROPERTIES

The fire double door comprises two door leafs hinged on a common door frame.

The door leafs are made of 100 mm thick sandwich panels with a minimum mineral core density of 170 kg/m3 and fire reaction rating A1. Embedded within the panels are reinforcing steel bars (a solution protected by European Patent no. W 02/079600A1) which bind the leaf frame flat bars to which the hinges are attached on one side and on the other side of which the lock assembly (on the active leaf) or the vertical locking bolt (on the passive leaf) is installed. The outside surfaces of the panels are lined with adhesively bonded sheet metal cladding, 0.5 - 0.7 mm.

Each door leaf is suspended on a minimum of three hinges provided with 3D alignment adjustment

The door frame is made of flat bars lined with steel sheet profiles with inward-fastened fireproof and rubber seals. The door frame can be ordered as a corner or a butted frame.

Either door leaf can be provided with hinged steel man door with the fire resistance of the main door.

The man door is available with or without a threshold.

The standard man door version is provided with a lever tumbler lock, double-sided door handle hardware and spring-return hinges; they can also be provided with panic exit devices (with locks, levers, or pushbars), and a sliding rail door closer.

The standard colour selection includes RAL 7035, 9002, and 9010.

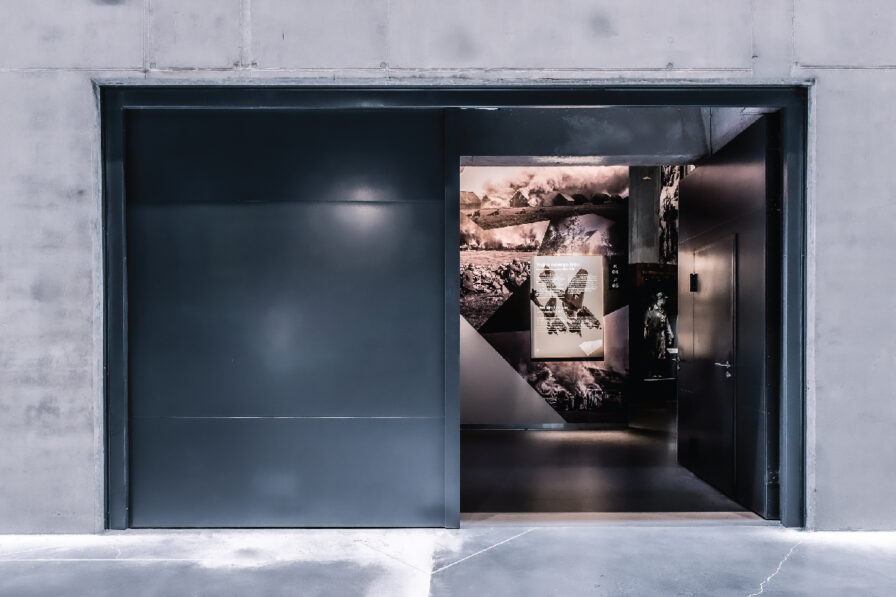

Zastosowanie produktu Marc-D

INTENDED USE

The Marc-D fire double doors are intended for regulatory-compliant separation of fire zones inside and outside of buildings and across handling system flows.

This product is mainly intended for public buildings, shopping malls, industrial plants, and warehouse buildings. It is a perfect wall closure solution whenever there is no wall length to spare around the opening. These doors can be operated with their fire protection performance; one of the door leaves can be provided with a man door.

Operating principle

Depending on the project specifications, the door can be:

Held closed – this option includes a set of door closers with a door sequence selector;

Held open – this option includes a set of door closers with a door sequence selector and electromagnetic door holders commanded by a fire alarm control panel;

Provided with a power drive to operate the opening and closing action.

OPTIONAL ACCESSORIES

  • Version with a man door (also available without a threshold
  • Glass and vent grates can be installed in the door leafs
  • Available in PN-EN 13501-2:2016 smoke control class Sa and S200 on individual request
  • Available in an Ex-proof version [PN-EN, ATEX] on individual request
  • Available with panic exit locks and devices
  • Available with electrical drive units
  • The electromagnetic door holder version can be provided with a wide range of electrical accessories, including fire alarm systems, door leaf position monitoring, and access control solutions
  • The door components can be ordered finished in any RAL palette colour or in stainless steel
  • Fire alarm control panel with an UPS pre-wired for interfacing with the field fire alarm system and/or local smoke/heat detectors
  • Electrical components [available kitted with the fire alarm control panel]
  • Technical key switch
  • Electromagnetic holder
  • Detectors [smoke and/or heat]
  • Detectors [smoke and/or heat]
  • Drop-down or brush seal
