Marc-EVO
Resilient fire protection curtain
EW 120/E120 EW 60/E120 EW 60/E90
Designed per custom specifications
certificates
Resilient fire protection curtain
EW 120/E120 EW 60/E120 EW 60/E90
Designed per custom specifications
certificates

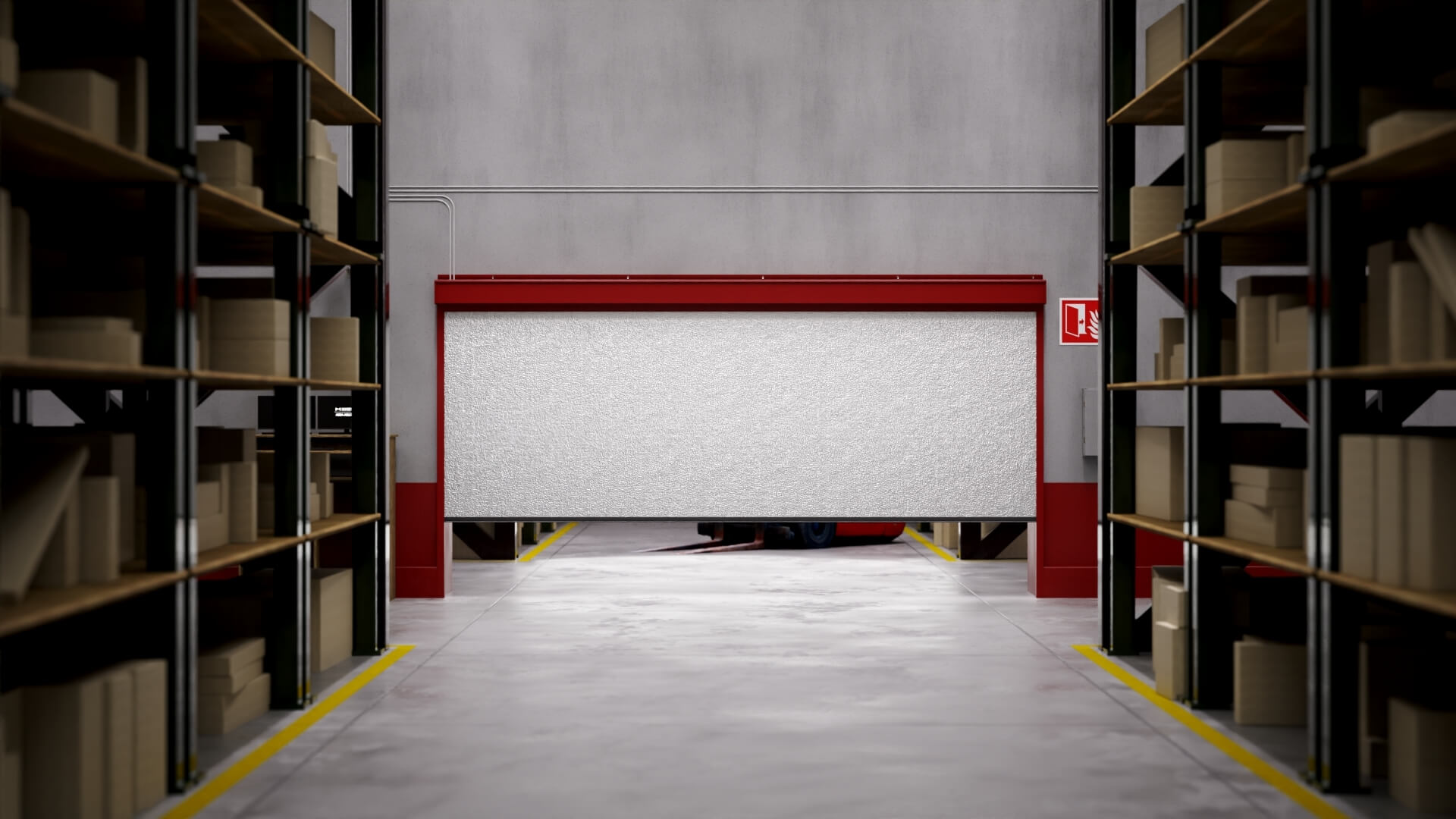

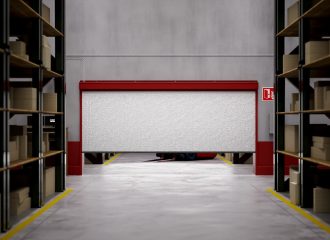

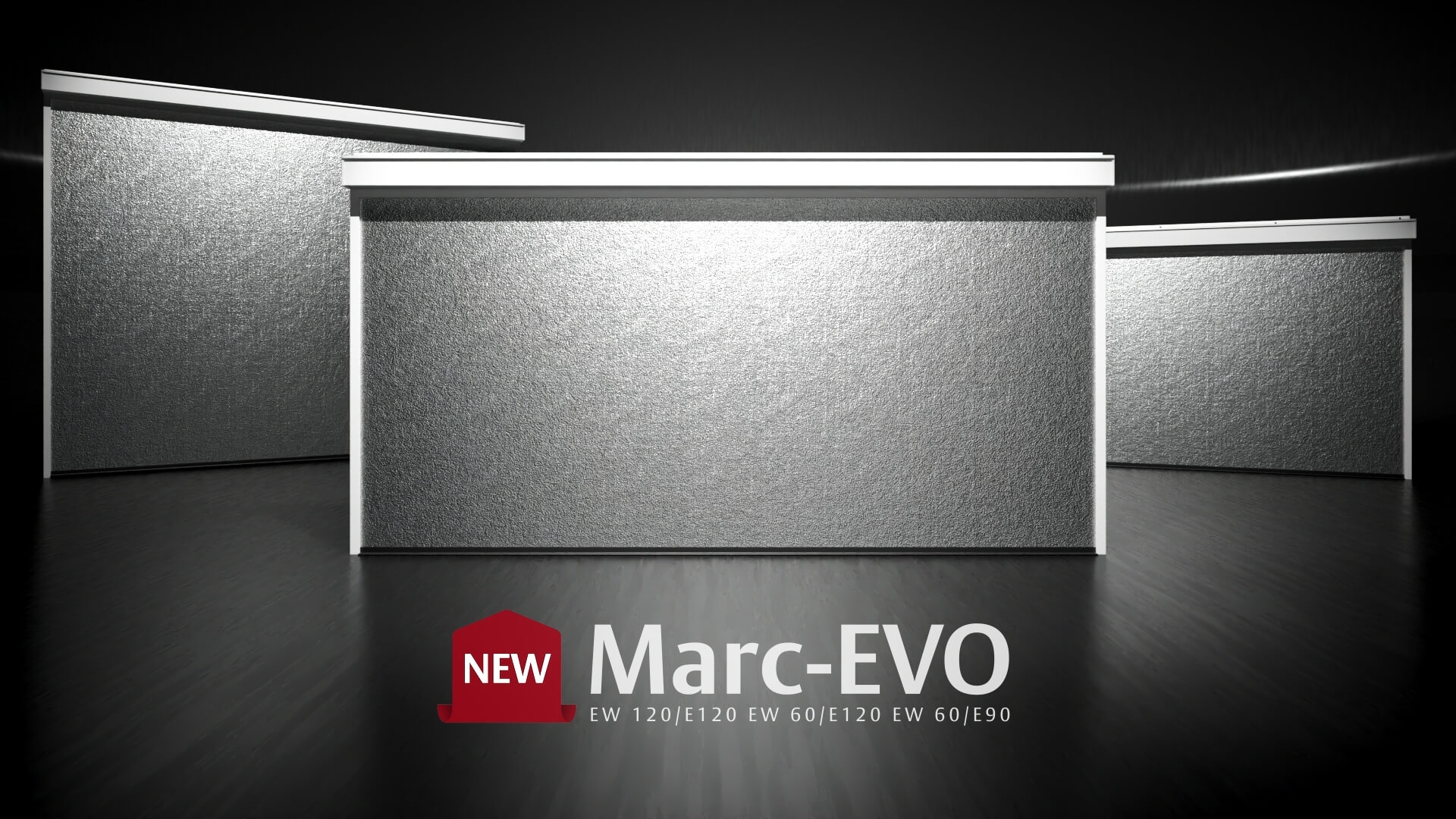

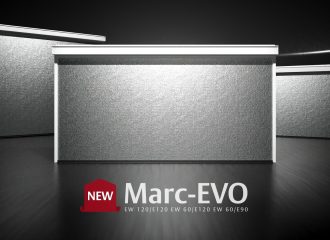

The Marc-EVO rolling fire shutter is a modern and compact solution designed for facilities where effective fire protection must go hand in hand with space efficiency, aesthetic integration, and fast installation. Thanks to its lightweight structure and thin curtain, the shutter is exceptionally easy to transport and install – even in buildings with limited load-bearing capacity.
Despite its low weight and compact dimensions, the shutter provides full fire resistance rated at EW 120/E120 EW 60/E120 EW 60/E90, fully compliant with current fire safety regulations and ensuring a reliable barrier in the event of a fire emergency.
Its compact headbox and slim side guides enable seamless architectural integration—even in environments with high aesthetic requirements. The product can be fully concealed within façades, corridors, window recesses, niches, or suspended ceilings, making it virtually invisible during daily operation.
Designed with maximum installation versatility in mind, the shutter can be mounted in corridor or surface-mounted configurations—even on lightweight structures such as plasterboard walls or steel partitions. Distance-mounted fixing eliminates thermal bridging, contributing to improved energy efficiency and minimizing the risk of condensation.
This solution has been created for demanding commercial, industrial, and public sector projects—where safety, functionality, and modern design must always go hand in hand.
The Marc-Evo resilient fire protection curtains are intended for regulatory-compliant separation of fire zones inside and outside of buildings.
Thanks to the low header installation height required, the curtain is perfect for installation at construction partitions where every square centimetre of usable floor area matters and the product dimensions must be minimised.
For outdoor installations, the product can be installed on offset brackets to cancel cold bridges.
The Marc-Evo curtains up to 2.5 m wide and 3.0 m high can be provided with a gravity-assisted drive unit. The product is triggered to close with a thermal fusible trip. The torsion spring installed in the shaft ensures a constant closing speed and provides an easy opening action without any additional drive operators, like cranks.
For powered curtains, the curtain is wound on the shaft and held open either by a brake or the self-arresting drive transmission. When a fire alarm is detected at the control inputs, the sheet is released and unwinds into the closed position.
In the spring-loaded curtain version (which features no electric drive unit), the curtain door sheet is wound on the shaft and held so by a thermal fusible trip, which breaks at approximately 74°C to unwind the curtain and close the opening.
