Sugar plant

MAŁKOWSKI-MARTECH S.A. - Sharing Vision of Safety

Project characteristics:

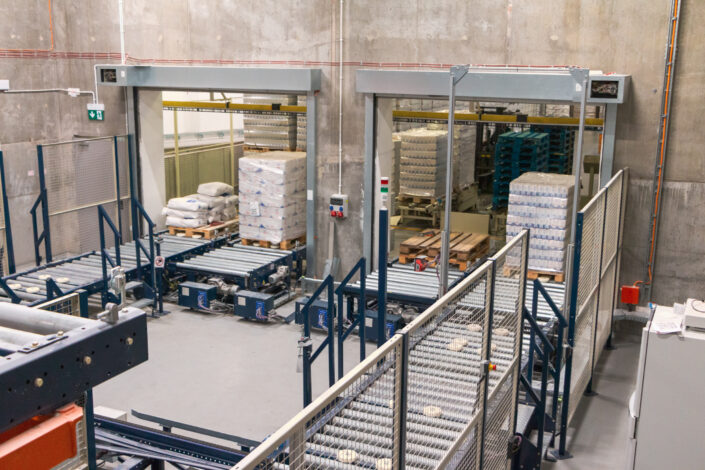

We installed our handling system fire closures at the Środa Wielkopolska sugar plant.

The fire closures are intended for installation at the penetrations of handling systems in fire zone separating walls.

Each handling system fire closure solution is designed and adapted to custom specifications of the project owner.
The selection of products components includes the closure solution, the required fire-proof seals within the handling system conveyor, and optionally, an optional emergency removal system to clear the handled materials from the operating range of the fire closure.

The fire closure control can be extended and integrated to include the handling system and, if required, it can ensure emergency power supply for a consistent and failsafe performance of the fire closure.

Possible configuration options:
handling system position monitoring inputs and output;
fire alarm acknowledgement inputs and outputs;
awaiting the external release of door closing operation;
system operating area monitoring; failure display/indication;
connectivity with peripherals, including all types of indicators/displays, fire detectors, manual call points, remote control panels, and other solutions specified by the project owner;
emergency override of the handling system to clear the fire closure operating range, governed by specific input/output states.

The controls ensure full fire safety for both buildings and the entire handling line. In the event of a fire emergency, the control system monitors the clear passage of the door for obstruction by handled materials and accelerates or decelerates the handling line. Synchronisation of closure of fire protection conveyor systems with the operation of the transport line is a control priority and guarantees that the system maintains its function during a fire.
